Model representing a parameteric capsule with flanged flat endcaps.

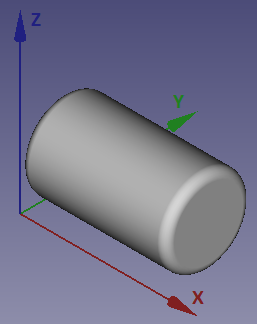

By default, the capsule is oriented such that the endcaps are aligned with the x-axis:
The geometry of this shape includes the following parameters:
cylinder_radius: Outer radius (inm) of the center cylindrical part of the Capsulecylinder_length: Length (inm) of the center cylindrical part of the Capsulecylinder_thickness: Thickness (inm) of the cylindrical shell of the Capsuleendcap_thickness: Thickness (inm) of the flat endcaps of the Capsule
Note that the above dimensions should be interpreted as if the capsule is unrotated. In other words, any shape rotation takes place after the capsule dimensions have been specified.
FlangedFlatCapsule(identifier: str, material_density_kg_m3: Optional[float] = 1.0)
45 def __init__(self, identifier: str, material_density_kg_m3: Optional[float] = 1.0) -> None: 46 """Initializes a parametric capsule object with flanged flat endcaps. 47 48 Parameters 49 ---------- 50 identifier : `str` 51 Unique identifying name for the object. 52 material_density_kg_m3 : `float`, optional, default=1.0 53 Uniform material density in `kg/m^3` to be used in mass property calculations. 54 """ 55 super().__init__(identifier, self.__create_cad__, None, material_density_kg_m3) 56 setattr(self.geometry, 'cylinder_radius', Symbol(self.name + '_cylinder_radius')) 57 setattr(self.geometry, 'cylinder_length', Symbol(self.name + '_cylinder_length')) 58 setattr(self.geometry, 'cylinder_thickness', Symbol(self.name + '_cylinder_thickness')) 59 setattr(self.geometry, 'endcap_thickness', Symbol(self.name + '_endcap_thickness'))
Initializes a parametric capsule object with flanged flat endcaps.
Parameters
- identifier (
str): Unique identifying name for the object. - material_density_kg_m3 (
float, optional, default=1.0): Uniform material density inkg/m^3to be used in mass property calculations.
def
set_geometry( self, *, cylinder_radius_m: Optional[float], cylinder_length_m: Optional[float], cylinder_thickness_m: Optional[float], endcap_thickness_m: Optional[float]) -> FlangedFlatCapsule:
94 def set_geometry(self, *, cylinder_radius_m: Union[float, None], 95 cylinder_length_m: Union[float, None], 96 cylinder_thickness_m: Union[float, None], 97 endcap_thickness_m: Union[float, None]) -> FlangedFlatCapsule: 98 """Sets the physical geometry of the current `FlangedFlatCapsule` object. 99 100 See the `FlangedFlatCapsule` class documentation for a description of each geometric 101 parameter. 102 """ 103 self.geometry.set(cylinder_radius=cylinder_radius_m, 104 cylinder_length=cylinder_length_m, 105 cylinder_thickness=cylinder_thickness_m, 106 endcap_thickness=endcap_thickness_m) 107 return self
Sets the physical geometry of the current FlangedFlatCapsule object.
See the FlangedFlatCapsule class documentation for a description of each geometric
parameter.
def
get_geometric_parameter_bounds(self, parameter: str) -> Tuple[float, float]:
109 def get_geometric_parameter_bounds(self, parameter: str) -> Tuple[float, float]: 110 parameter_bounds = { 111 'cylinder_radius': (0.01, 2.0), 112 'cylinder_length': (0.01, 2.0), 113 'cylinder_thickness': (0.001, 0.05), 114 'endcap_thickness': (0.001, 0.05) 115 } 116 return parameter_bounds.get(parameter, (0.0, 0.0))
Abstract method that must be overridden by a concrete SymPart class to return the
minimum and maximum expected bounds for a given geometric parameter.
Parameters
- parameter (
str): Name of the geometric parameter for which to return the minimum and maximum bounds.
Returns
Tuple[float, float]: Minimum and maximum bounds for the specified geometricparameter.
material_volume: Union[float, sympy.core.expr.Expr]
Material volume (in m^3) of the SymPart (read-only).
