Model representing a set of planar parameteric airfoils.

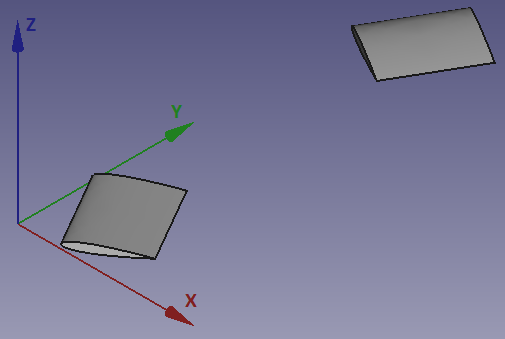

By default, the airfoils are oriented in the following configuration:
The geometry of this shape includes the following parameters:
max_thickness: Maximum thickness (in% of length) of each airfoilchord_length: Length (inm) of the chord of each airfoilspan: Width (inm) of each airfoilseparation_radius: Radius (inm) of separation between each airfoilcurvature_tilt: Amount of tilt (indeg) of each airfoil
Note that the above dimensions should be interpreted as if the airfoils are unrotated. In other words, any shape rotation takes place after the airfoil dimensions have been specified.
PlanarAirfoils(identifier: str, material_density_kg_m3: Optional[float] = 1.0)
46 def __init__(self, identifier: str, material_density_kg_m3: Optional[float] = 1.0) -> None: 47 """Initializes a planar parametric airfoil object. 48 49 Parameters 50 ---------- 51 identifier : `str` 52 Unique identifying name for the object. 53 material_density_kg_m3 : `float`, optional, default=1.0 54 Uniform material density in `kg/m^3` to be used in mass property calculations. 55 """ 56 super().__init__(identifier, self.__create_cad__, None, material_density_kg_m3) 57 setattr(self.geometry, 'max_thickness', Symbol(self.name + '_max_thickness')) 58 setattr(self.geometry, 'chord_length', Symbol(self.name + '_chord_length')) 59 setattr(self.geometry, 'span', Symbol(self.name + '_span')) 60 setattr(self.geometry, 'separation_radius', Symbol(self.name + '_separation_radius')) 61 setattr(self.geometry, 'curvature_tilt', Symbol(self.name + '_curvature_tilt'))
Initializes a planar parametric airfoil object.
Parameters
- identifier (
str): Unique identifying name for the object. - material_density_kg_m3 (
float, optional, default=1.0): Uniform material density inkg/m^3to be used in mass property calculations.
def
set_geometry( self, *, max_thickness_percent: Optional[float], chord_length_m: Optional[float], span_m: Optional[float], separation_radius_m: Optional[float], curvature_tilt_deg: Optional[float]) -> PlanarAirfoils:
121 def set_geometry(self, *, max_thickness_percent: Union[float, None], 122 chord_length_m: Union[float, None], 123 span_m: Union[float, None], 124 separation_radius_m: Union[float, None], 125 curvature_tilt_deg: Union[float, None]) -> PlanarAirfoils: 126 """Sets the physical geometry of the current `PlanarAirfoils` object. 127 128 See the `PlanarAirfoils` class documentation for a description of each geometric 129 parameter. 130 """ 131 self.geometry.set(max_thickness=max_thickness_percent, 132 chord_length=chord_length_m, 133 span=span_m, 134 separation_radius=separation_radius_m, 135 curvature_tilt=curvature_tilt_deg) 136 return self
Sets the physical geometry of the current PlanarAirfoils object.
See the PlanarAirfoils class documentation for a description of each geometric
parameter.
def
get_geometric_parameter_bounds(self, parameter: str) -> Tuple[float, float]:
138 def get_geometric_parameter_bounds(self, parameter: str) -> Tuple[float, float]: 139 parameter_bounds = { 140 'max_thickness': (0.01, 0.90), 141 'chord_length': (0.1, 2.0), 142 'span': (0.0, 2.0), 143 'separation_radius': (0.0, 1.5), 144 'curvature_tilt': (0.0, 45.0) 145 } 146 return parameter_bounds.get(parameter, (0.0, 0.0))
Abstract method that must be overridden by a concrete SymPart class to return the
minimum and maximum expected bounds for a given geometric parameter.
Parameters
- parameter (
str): Name of the geometric parameter for which to return the minimum and maximum bounds.
Returns
Tuple[float, float]: Minimum and maximum bounds for the specified geometricparameter.
