  1#!/usr/bin/env python3
  2# Copyright (C) 2022, Will Hedgecock
  3#
  4# This program is free software: you can redistribute it and/or modify
  5# it under the terms of the GNU General Public License as published by
  6# the Free Software Foundation, either version 3 of the License, or
  7# (at your option) any later version.
  8#
  9# This program is distributed in the hope that it will be useful,
 10# but WITHOUT ANY WARRANTY; without even the implied warranty of
 11# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 12# GNU General Public License for more details.
 13#
 14# You should have received a copy of the GNU General Public License
 15# along with this program.  If not, see <http://www.gnu.org/licenses/>.
 16
 17from __future__ import annotations
 18from PyFreeCAD.FreeCAD import Part
 19from typing import Dict, Optional, Tuple, Union
 20from sympy import Expr, Symbol
 21from . import EndcapShape
 22import math
 23
 24class FlangedFlatPlate(EndcapShape):
 25   """Model representing a hollow, parametric, flat-plated endcap with flanged corners.
 26
 27   By default, the endcap is oriented such that its base is perpendicular to the z-axis:

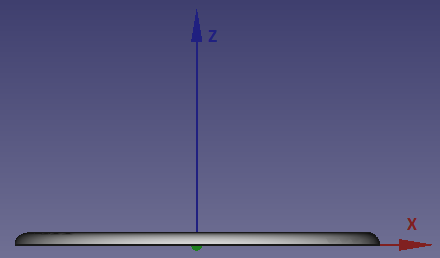

 28
 29   ![FlangedFlatPlate](https://symbench.github.io/SymCAD/images/FlangedFlatPlate.png)
 30
 31   The `geometry` of this shape includes the following parameters:
 32
 33   - `radius`: Radius (in `m`) of the base of the FlangedFlatPlate
 34   - `thickness`: Thickness (in `m`) of the shell of the FlangedFlatPlate
 35
 36   Note that the above dimensions should be interpreted as if the FlangedFlatPlate is unrotated.
 37   In other words, any shape rotation takes place *after* the FlangedFlatPlate dimensions have been
 38   specified.
 39   """
 40
 41   # Constructor ----------------------------------------------------------------------------------
 42
 43   def __init__(self, identifier: str, material_density_kg_m3: Optional[float] = 1.0) -> None:
 44      """Initializes a hollow, parametric, flat-plated endcap object with flanged corners.
 45
 46      Parameters
 47      ----------
 48      identifier : `str`
 49         Unique identifying name for the object.
 50      material_density_kg_m3 : `float`, optional, default=1.0
 51         Uniform material density in `kg/m^3` to be used in mass property calculations.
 52      """
 53      super().__init__(identifier, self.__create_cad__, None, material_density_kg_m3)
 54      setattr(self.geometry, 'radius', Symbol(self.name + '_radius'))
 55      setattr(self.geometry, 'thickness', Symbol(self.name + '_thickness'))
 56
 57
 58   # CAD generation function ----------------------------------------------------------------------
 59
 60   @staticmethod
 61   def __create_cad__(params: Dict[str, float], _fully_displace: bool) -> Part.Solid:
 62      """Scripted CAD generation method for a `FlangedFlatPlate`."""
 63      thickness_mm = 1000.0 * params['thickness']
 64      radius_mm = 1000.0 * params['radius']
 65      flat_plate = Part.makeCylinder(radius_mm, thickness_mm)
 66      return flat_plate.makeFillet(thickness_mm - 0.001, flat_plate.Edges[0:1])
 67
 68
 69   # Geometry setter ------------------------------------------------------------------------------
 70
 71   def set_geometry(self, *, radius_m: Union[float, None],
 72                             thickness_m: Union[float, None]) -> FlangedFlatPlate:
 73      """Sets the physical geometry of the current `FlangedFlatPlate` object.
 74
 75      See the `FlangedFlatPlate` class documentation for a description of each geometric parameter.
 76      """
 77      self.geometry.set(radius=radius_m, thickness=thickness_m)
 78      return self
 79
 80   def get_geometric_parameter_bounds(self, parameter: str) -> Tuple[float, float]:
 81      parameter_bounds = {
 82         'radius': (0.0, 2.0),
 83         'thickness': (0.0, 0.1)
 84      }
 85      return parameter_bounds.get(parameter, (0.0, 0.0))
 86
 87
 88   # Geometric properties -------------------------------------------------------------------------
 89
 90   @property
 91   def material_volume(self) -> Union[float, Expr]:
 92      return self.displaced_volume
 93
 94   @property
 95   def displaced_volume(self) -> Union[float, Expr]:
 96      cylinder_radius = self.geometry.radius - self.geometry.thickness
 97      return (math.pi * cylinder_radius**2 * self.geometry.thickness) + \
 98             (0.25 * math.pi * self.geometry.thickness**2) * \
 99             (2.0 * math.pi * (cylinder_radius + self.geometry.thickness))
100
101   @property
102   def surface_area(self) -> Union[float, Expr]:
103      cylinder_radius = self.geometry.radius - self.geometry.thickness
104      return (math.pi * cylinder_radius**2) + \
105             (2.0 * math.pi * (cylinder_radius + self.geometry.thickness)) * \
106             (2.0 * math.pi * self.geometry.thickness) * 0.25
107
108   @property
109   def unoriented_center_of_gravity(self) -> Tuple[Union[float, Expr],
110                                                   Union[float, Expr],
111                                                   Union[float, Expr]]:
112      return self.geometry.radius, self.geometry.radius, 0.5 * self.geometry.thickness
113
114   @property
115   def unoriented_center_of_buoyancy(self) -> Tuple[Union[float, Expr],
116                                                    Union[float, Expr],
117                                                    Union[float, Expr]]:
118      return self.unoriented_center_of_gravity
119
120   @property
121   def unoriented_length(self) -> Union[float, Expr]:
122      return 2.0 * self.geometry.radius
123
124   @property
125   def unoriented_width(self) -> Union[float, Expr]:
126      return self.unoriented_length
127
128   @property
129   def unoriented_height(self) -> Union[float, Expr]:
130      return self.geometry.thickness
131
132   @property
133   def oriented_length(self) -> Union[float, Expr]:
134      # TODO: Implement this
135      return 0
136
137   @property
138   def oriented_width(self) -> Union[float, Expr]:
139      # TODO: Implement this
140      return 0
141
142   @property
143   def oriented_height(self) -> Union[float, Expr]:
144      # TODO: Implement this
145      return 0
